The T335 EDITION27 makes particularly clever use of the available space. An electric drop-down bed, spacious face-to-face seating area, a spacious bathroom, and a walk-in wardrobe provide a surprising amount of freedom to move around.
Your model at a glance.
Choose your desired chassis and discover the respective vehicle data and equipment options.
-
- Price
-
from 68.099 €
- Chassis
- Ford Transit
- Sleeping berths
- 2 - 4
- Length
- 699 cm
- Width from
- 232 cm
- Height
- 293 cm
Important information regarding the selection of your motorhome
When buying a motorhome, camper van or urban vehicle (hereafter: motorhome), it is particularly important to choose the right layout and an appealing design. In addition, weight also plays an essential role. Family, friends, optional equipment, accessories and baggage – space must be available for all of these. At the same time, there are legal and technical limits to the configuration and load. Every motorhome is designed for a certain weight, which may not be exceeded during driving. For motorhome buyers, this raises the question: How should I configure my vehicle to accommodate passengers, baggage and accessories according to my needs without the vehicle exceeding this maximum weight? In order to make this decision easier for you, we provide you below with a few tips that are particularly important when selecting your vehicle from our portfolio:
1. The technically permissible maximum laden mass…
… is a value set by the manufacturer which the vehicle may not exceed. Carado specifies a layout-related upper limit for the vehicle, which can vary from layout to layout (e.g. 3,500 kg, 4,400 kg). You can find the corresponding specification for each layout in the technical data.2. The mass in running order…
... consists – to put it simply – of the basic vehicle with standard equipment plus a standard weight of 75 kg for the driver. It is legally permissible and possible for the mass in running order of your vehicle to deviate from the nominal value stated in the sales documents. The permissible tolerance is ± 5 %. The permissible range in kilograms is given in brackets after the mass in running order. In order to provide you with full transparency regarding possible weight deviations, Carado weighs each vehicle at the end of the line and informs your trade partner of your vehicle's weighing result for forwarding to you.
Detailed explanations on the subject of mass in running order can be found in the “Legal Information” section.3. The permitted number of seats (including driver)…
… is determined by the manufacturer in what is referred to as the type-approval procedure. This results in what is referred to as the mass of the passengers. For this, a standard weight of 75 kg per passenger (without driver) is calculated.
Detailed explanations on the subject of mass of the passengers can be found in the “Legal Information” section4. The manufacturer-specified mass for optional equipment…
… is a value set by Carado per layout for the maximum mass of optional equipment that can be ordered. This limit is intended to ensure that the minimum pay-mass, i.e. the legally prescribed free mass for baggage and retrofitted accessories, is actually available for the vehicle load capacity of the vehicles delivered by Carado. If, in exceptional cases, the weighing at the end of the line nevertheless shows that the actual load capacity falls short of the minimum pay-mass due to a permissible weight deviation, we will check together with your trade partner and you whether we should, for example, increase the load capacity of the vehicle, reduce the number of seats or remove optional equipment before delivering the vehicle.
Detailed explanations on the subject of the effects of the tolerances on the minimum pay-mass and the payload can be found in the “Legal Information” section.5. The additional weight of optional equipment and packages...
... increases the actual mass of the vehicle (= mass in running order plus selected optional equipment) and reduces the pay-mass. The specified value shows the additional weight compared to the standard equipment of the respective layout. The total weight of the selected packages and optional equipment must not exceed the manufacturer-specified mass for optional equipment.Technical data
T335 EDITION27
Pricing information:
Basic price incl. VAT 68.099 € Chassis and engine:
Chassis Ford Transit Standard engine 2.0 kW (BHP) 96 (130) Tire size 235/65 R 16 Vehicle dimensions:
Length | Width | Height (cm) 699 / 232 / 293 Headroom in living area (cm) 210 Wheelbase (cm) 375 Inner dimensions storage locker right/left W x H (cm) 75 x 120 50 x 170 Weight-related information:
Permitted number of seats (including driver)* 3 - 4 OPT Mass in running order (kg)* 2924 (2778 to 3070)* Manufacturer-specified mass for optional equipment (kg)* 241 Technically permissible maximum laden mass (kg)* 3500 Trailer load braked (unbraked) (kg) 2000 (750) Technology:
Fresh water tank capacity total / at driving filling (l) 122 / 20 Waste water tank (l) 92 Sockets 230 V 5 Sockets: USB 7 Gas bottle storage (filling weight in kg) 2 x 11 Interior:
Berths 2 - 4 OPT Bed dimension middle L x B (cm) 210 x 160 - 125 OPT Miscellaneous:
Lying area Alcove / pull-down bed / Clever-lift bed (cm) 199 x 148 - 135 Heating type Combi 6 Gas a) This is a recommended retail price based on German retail prices. Prices in other countries may differ due to currency conversion and country-specific VAT, fees and import duties. For the latest information, please always enquire with a local dealer about the prices applicable in your country.
* The specified mass in running order is a default value defined in the type-approval procedure. Due to manufacturing tolerances, the actual weighed mass in running order may deviate from the value stated above. Deviations of up to ± 5 % of the mass in running order are legally permissible and possible. The permissible range in kilograms is given in brackets after the mass in running order. The manufacturer-specified mass for optional equipment is a calculated value for each type and layout that [brand] uses to determine the maximum weight available for factory-fitted optional equipment. The limitation of optional equipment is intended to ensure that the minimum pay-mass, i.e. the legally prescribed free mass for baggage and retrofitted accessories, is actually available for the vehicle load capacity of the vehicles delivered by [brand]. The real weight of your vehicle ex works can only be determined when it is weighed at the end of the line. If, in exceptional cases, the weighing shows that the actual load capacity falls below theminimum pay-mass despite limiting the optional equipment due to a permissible weight deviation, we will check together with your trade partner and you whether we should, for example, increase the load capacity of the vehicle, reduce the number of seats or remove optional equipment before delivering the vehicle. The technically permissible maximum laden mass of the vehicle and the technically permissible maximum mass on the axle must not be exceeded.-
Packs EDITION27 Pack T335 Highlights Edition27 Basic Pack Base vehicle Ford Transit 3.500 kg | 2.0 | 96 kW (130 BHP) | Euro 6 | 6-speed manual gearbox Start & Stop function incl. charge booster 70 l fuel tank Cruise control Intelligent speed detection Wide-track chassis Headlights with daytime running lights Electric parking brake Driver and passanger airbag Disc brakes | rear and front wheel stabilisers | heat convection | tachometer | power steering | height-adjustable headlights | immobiliser | lap and diagonal seat belts ABS (anti-lock braking system) | ESC (electronic stability program) | TBC (traction control) | EBD (electronic brake force distribution) Hill start assist (crosswind assist | safety brake assist | rollover protection) Lane departure warning Pre-collision assist Fatigue warning Automatic high beam control Front parking assistance Tyre pressure indicator Electric cab windows Central locking cab with remote control Electric and heated mirrors Rear view camera 12” display incl. Apple Car Play & Android Car | four front speakers | DAB antenna | Bluetooth interface | USB port | hands-free system Leather steering wheel Front wheel drive Cup holder driver and passenger side Tablet holder and USB socket Comfort swivel seats for driver and front passenger, each with 2 armrests and lumbar support Height and tilt adjustment for driver and passenger seat Driver and passenger seats in matching colours Fix & Go breakdown kit Automatic climate control Exterior setup 7-year water ingress warranty GRP (glass fibre reinforced plastic) roof and rear wall Aluminium sidewalls Roof and sidewall thickness 34 mm | floor thickness 42,5 mm Rear light carrier in three parts with integrated LED multifunction lights Double glazed hinged window with cassette blinds and flyscreens (except for bathroom) Roof light with frosted perspex glass and flyscreen Electric entrance step Large rear garage with lowered frame | lashing rings and interior lighting (depending on model) Splash water seals for the exterior storage locker and doors Payload in garage up to 150 kg High quality entrance door with ergonomic handle inside and outside Comfort Ergonomically shaped upholstery for improved seating comfort Cozy lounge seating set with a freestanding, foldable table Folding seat facing forward on the left with seatbelt and ISOFIX Clever Pull-down bed (in T335 ED27) High-quality mattress in all beds Removable and washable mattress cover Wooden slatted frame in all fixed-beds for better sleeping comfort Spacious storage compartments and storage options Ventilation for storage locker and seat backrest Furniture in 'Visby Oak' and 'Sand Grey' Floor in 'Glacier Grey' Installations LED lighting integrated above the roof cabinets On-board control panel supplies information about filling levels and battery capacity Automatic switching and separating systems for starter and leisure battery as well as for refrigerator Electric charger for leisure and vehicle battery 12 V / 18 A CEE 230 V external socket with safety device Residual Current Device (RCD) LED awning light LED interior light Mirror and coat hooks USB Socket x 7 Fresh water tank capacity total 122 l | waste water tank 92 l Heating | gas supply Gas heating Combi 6 Gas control valves easily accessible and centrally arranged Gas bottle locker for 2 x 11 kg gas bottles Kitchen Ergonomically arranged kitchen with spacious work top Large soft-close drawer in kitchen 2 burner hob and glass lid Large stainless steel circular sink with cover LED light band Waste bin Flexible railing system with 2 hooks Bathroom Spacious bathroom with separate shower on the opposite side Swivel cassette toilet with electric flush Roof vent with integrated flyscreen blind (depending on model) Large mirrors Clothes rail in bathroom Flexible railing system with two hooks Shower cubicle lining -
Packs Assistance Pack Base vehicle Ford Transit 3.500 kg | 2.0 | 96 kW (130 BHP) | Euro 6 | 8-speed automatic gearbox Ford Transit 3.500 kg | 2.0 | 122 kW (165 BHP) | Euro 6 | 6-speed manual gearbox Ford Transit 3.500 kg | 2.0 | 122 kW (165 BHP) | Euro 6 | 8-speed automatic gearbox Bi-xenon headlights with static cornering lights and LED daytime running lights Electrical preparation for trailer coupling Increase of load capacity Ford Transit Maxi Chassis 4.100 kg | 2.0 | 122 kW (165 BHP) | Euro 6 | 8-speed automatic gearbox* Exterior setup Two rear corner steadies Bike rack for 3 bikes Comfort Carpet Wooden duckboard for the shower tray Bed conversion for seating area 4th seat on the side bench, foldable with seat belt and Isofix Special coloured overhead storage in Visby Oak Installations Caramatic SafeDrive PLUS 12V TV pre-cabling incl. flat screen holder Heating Combi 6 E (with el. heating element) | digital control panel Combi 6 DE diesel heater (with electric heating element), including integrated altitude pressure sensor | digital control panel Electric floor heating in living area Pre-cabling for solar panel Oven in kitchen Additional 104 Ah lithium battery Solar panel 100 watt incl. MPPT controller Mobile internet (WiFi | LTE antenna incl. router) Soft furnishing Soft furnishing in Grey Original Accessories ClearliQ travel water filter Bike Carrier for 2 bikes Ford Passenger door safe Ford Cab carpet -
EDITION27 Pack T335 Fog lights Awning (Length depends on layout) Headlights with static cornering light Functional wall in the garage Fridge 137 l with freezer compartment 15 l Manual cab air conditioning Soft furnishing Forest Sand 20 Years Carado Decal Lithium battery 104 Ah instead of AGM 95 Ah Framed windows 2nd external storage door Insulated waste water tank High-level rear light cluster Cab sunroof Folding cab blinds 16" alloy wheels (Black) Radiator grille 'Trail' Chassis colour Moondust Silver metallic Painted bumper Basic Pack Panoramic roof light 70 x 50 cm Clear glass roof light 40 x 40 Flyscreen door (one-piece) Comfort entrance door Bridge Light

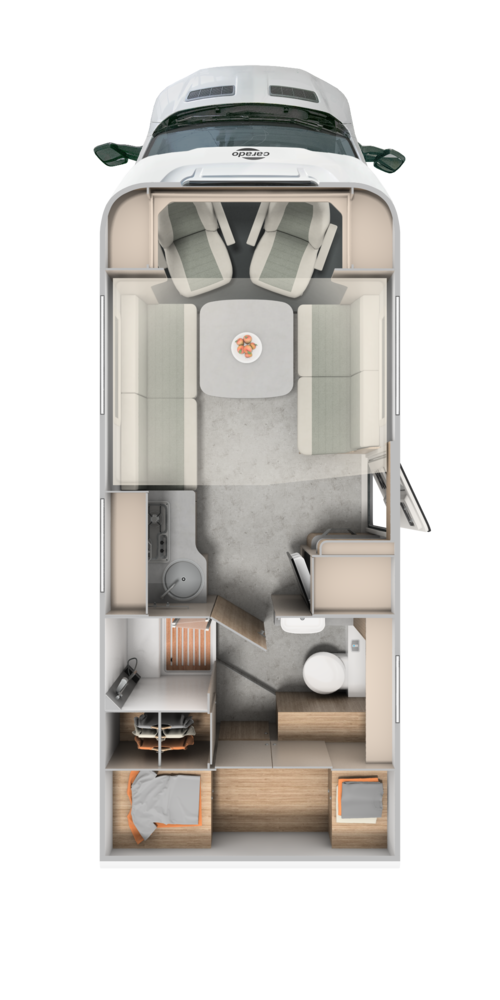

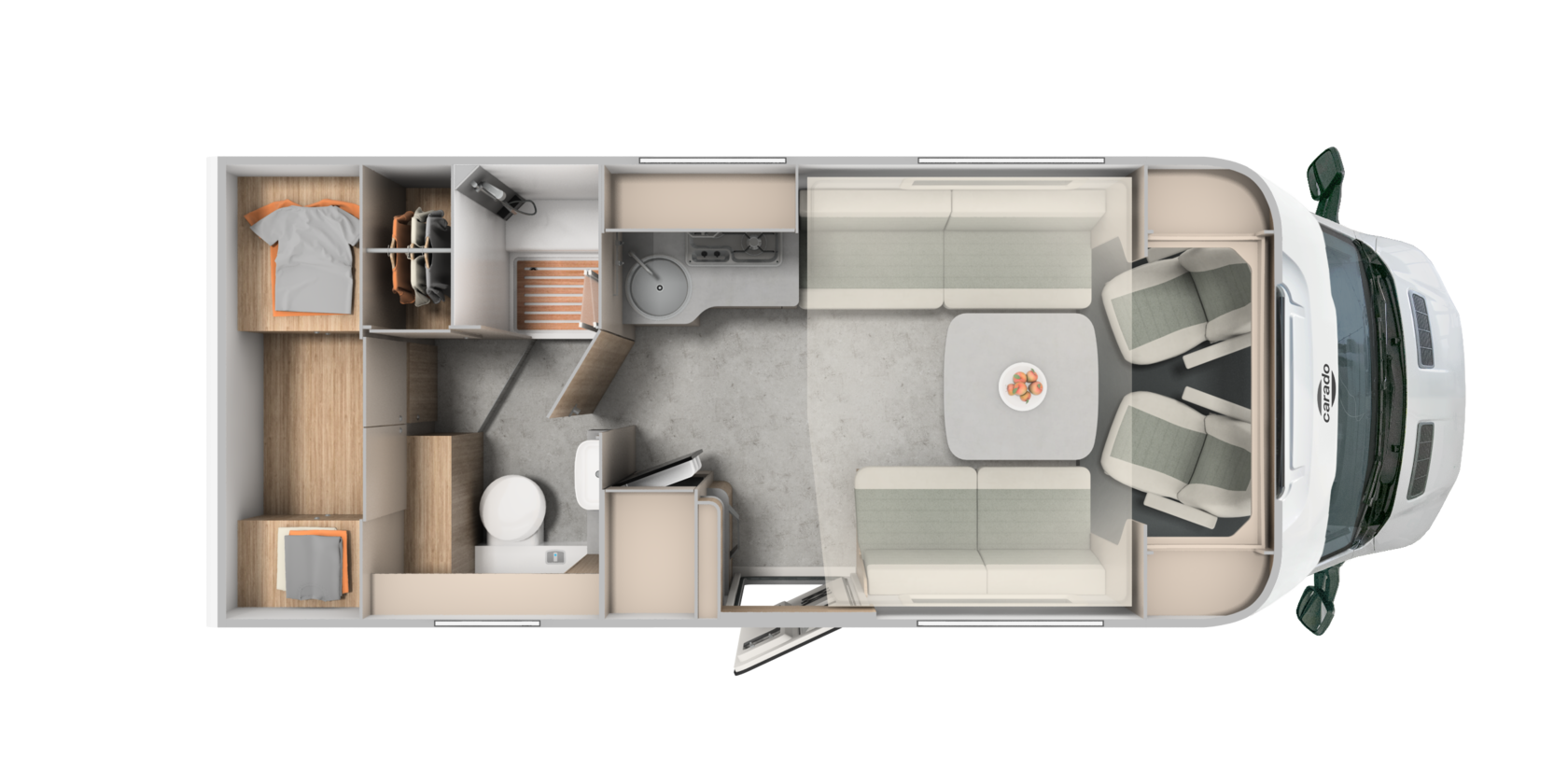

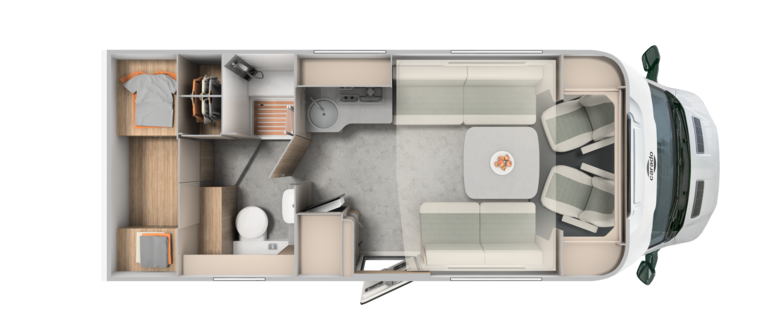

A floor plan full of ideas.
During the day, the living area remains fully available. In the evening, the electric Clever drop-down bed lowers at the touch of a button, creating a comfortable sleeping area.
Its rear-end placement creates a spacious bathroom with a large mirror, practical storage areas, and a fully equipped separate shower cabin.
The L-shaped kitchen offers plenty of space and blends harmoniously into the living area with its 2-burner hob and sink. Includes a 137-litre refrigerator in the entrance area.
Clothing, shoes and travel essentials all have their dedicated place in the spacious rear area. The walk-in wardrobe keeps everything organized, even on longer journeys.
